Home >> Product >> Railway Cable >> FIRERAIL TRACTION CABLES0.6/1KV Multicore Thin Wall Traction Cables
Applications :
- Multicore power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts.
Standards :
- BS 6853 -1a
- DIN 5510-1 1-4
- NFF 16-101 F0
 |
 |

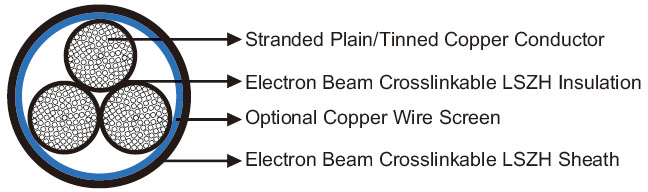

Construction :
- Conductor : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
- Insulation : Electron beam crosslinkable thin wall LSZH compound.
- Screen(optional) : Copper Wire Screen (for screened cable).
- Outer Sheath : Electron beam crosslinkable LSZH compound.
Optional :
- FRA-TW-1M-FR (Fire resistant)
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 0.5 0.75 1.0 1.5 2.5 Maximum Conductor Resistance Ω/km 40.1 26.7 20.0 13.7 8.21 Voltage Rating KV 0.6/1.0
Mechanical and Thermal Properties :
- Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm)
- Temperature Range : -40°C to +120°C.
Dimensions and Weight :
FRA-TW-1M (Multicore unscreened)
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Nominal Diameter of Strands No/mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| FRA-TW-1M-2C0.5S | 2×0.5 | 19/0.18 | 0.3 | 4.4 | 31 |
| FRA-TW-1M-3C0.5S | 3×0.5 | 19/0.18 | 0.3 | 4.6 | 36 |
| FRA-TW-1M-4C0.5S | 4×0.5 | 19/0.18 | 0.3 | 5.0 | 43 |
| FRA-TW-1M-5C0.5S | 5×0.5 | 19/0.18 | 0.3 | 5.5 | 53 |
| FRA-TW-1M-6C0.5S | 6×0.5 | 19/0.18 | 0.3 | 6.0 | 62 |
| FRA-TW-1M-2P0.5S | 2×2×0.5 | 19/0.18 | 0.3 | 6.5 | 58 |
| FRA-TW-1M-4P0.5S | 4×2×0.5 | 19/0.18 | 0.3 | 8.7 | 99 |
| FRA-TW-1M-2C0.75S | 2×0.75 | 19/0.22 | 0.3 | 4.75 | 35 |
| FRA-TW-1M-3C0.75S | 3×0.75 | 19/0.22 | 0.3 | 5.15 | 47 |
| FRA-TW-1M-4C0.75S | 4×0.75 | 19/0.22 | 0.3 | 5.6 | 57 |
| FRA-TW-1M-6C0.75S | 6×0.75 | 19/0.22 | 0.3 | 6.75 | 83 |
| FRA-TW-1M-2P0.75S | 2×2×0.75 | 19/0.22 | 0.3 | 7.75 | 81 |
| FRA-TW-1M-2C1S | 2×1.0 | 19/0.25 | 0.3 | 5.1 | 45 |
| FRA-TW-1M-3C1S | 3×1.0 | 19/0.25 | 0.3 | 5.4 | 54 |
| FRA-TW-1M-4C1S | 4×1.0 | 19/0.25 | 0.3 | 5.8 | 64 |
| FRA-TW-1M-6C1S | 6×1.0 | 19/0.25 | 0.3 | 7.3 | 98 |
| FRA-TW-1M-10C1S | 10×1.0 | 19/0.25 | 0.3 | 8.7 | 143 |
| FRA-TW-1M-25C1S | 25×1.0 | 19/0.25 | 0.3 | 12.8 | 324 |
| FRA-TW-1M-2C1.5S | 2×1.5 | 19/0.3 | 0.3 | 6.0 | 63 |
| FRA-TW-1M-3C1.5S | 3×1.5* | 19/0.3 | 0.3 | 6.3 | 76 |
| FRA-TW-1M-4C1.5S | 4×1.5 | 19/0.3 | 0.3 | 6.9 | 94 |
| FRA-TW-1M-5C1.5S | 5×1.5* | 19/0.3 | 0.3 | 7.8 | 116 |
| FRA-TW-1M-6C1.5S | 6×1.5 | 19/0.3 | 0.3 | 8.45 | 141 |
| FRA-TW-1M-7C1.5S(G/Y) | 7G 1.5 | 19/0.3 | 0.3 | 9.1 | 165 |
| FRA-TW-1M-8C1.5S | 8×1.5 | 19/0.3 | 0.3 | 10.3 | 201 |
| FRA-TW-1M-10C1.5S | 10×1.5 | 19/0.3 | 0.3 | 10.6 | 216 |
| FRA-TW-1M-18C1.5S | 18×1.5 | 19/0.3 | 0.3 | 13.4 | 374 |
| FRA-TW-1M-25C1.5S(G/Y) | 25G 1.5 | 19/0.3 | 0.3 | 15.5 | 494 |
| FRA-TW-1M-2C2.5S | 2×2.5 | 19/0.4 | 0.4 | 7.3 | 98 |
| FRA-TW-1M-3C2.5S | 3×2.5* | 19/0.4 | 0.4 | 7.8 | 122 |
| FRA-TW-1M-4C2.5S | 4×2.5 | 19/0.4 | 0.4 | 8.7 | 152 |
| FRA-TW-1M-5C2.5S | 5×2.5 | 19/0.4 | 0.4 | 9.4 | 181 |
| FRA-TW-1M-6C2.5S | 6×2.5 | 19/0.4 | 0.4 | 10.6 | 223 |
*earth cable can be offered as an option
G: earth cable (yellow/green)
FRA-TW-1M-OS (Multicore screened)
| Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Nominal Diameter of Strands No/mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
| FRA-TW-1M-OS-2C0.5S | 2×0.5 | 19/0.18 | 0.3 | 4.8 | 42 |
| FRA-TW-1M-OS-3C0.5S | 3×0.5 | 19/0.18 | 0.3 | 5.3 | 51 |
| FRA-TW-1M-OS-4C0.5S | 5×0.5 | 19/0.18 | 0.3 | 5.4 | 56 |
| FRA-TW-1M-OS-6C0.5S | 6×0.5 | 19/0.18 | 0.3 | 6.5 | 82 |
| FRA-TW-1M-OS-15C0.5S | 15×0.5 | 19/0.18 | 0.3 | 9.0 | 167 |
| FRA-TW-1M-OS-2P0.5S | 2×2×0.5 | 19/0.18 | 0.3 | 7.2 | 80 |
| FRA-TW-1M-OS-3P0.5S | 3×2×0.5 | 19/0.18 | 0.3 | 8.1 | 98 |
| FRA-TW-1M-OS-4P0.5S | 4×2×0.5 | 19/0.18 | 0.3 | 9.3 | 131 |
| FRA-TW-1M-OS-12P0.5S | 12×2×0.5 | 19/0.18 | 0.3 | 13.0 | 276 |
| FRA-TW-1M-OS-2C0.75S | 2×0.75 | 19/0.22 | 0.3 | 5.0 | 48 |
| FRA-TW-1M-OS-4C0.75S | 4×0.75 | 19/0.22 | 0.3 | 6.0 | 72 |
| FRA-TW-1M-OS-6C0.75S | 6×0.75 | 19/0.22 | 0.3 | 7.2 | 103 |
| FRA-TW-1M-OS-10C0.75S | 10×0.75 | 19/0.22 | 0.3 | 8.7 | 152 |
| FRA-TW-1M-OS-18C0.75S | 18×0.75 | 19/0.22 | 0.3 | 11.0 | 244 |
| FRA-TW-1M-OS-3P0.75S | 3×2×0.75 | 19/0.22 | 0.3 | 9.0 | 127 |
| FRA-TW-1M-OS-2C1S | 2×1.0 | 19/0.25 | 0.3 | 5.6 | 60 |
| FRA-TW-1M-OS-3C1S | 3×1.0 | 19/0.25 | 0.3 | 6.0 | 76 |
| FRA-TW-1M-OS-4C1S | 4×1.0 | 19/0.25 | 0.3 | 6.5 | 88 |
| FRA-TW-1M-OS-6C1S | 6×1.0 | 19/0.25 | 0.3 | 7.8 | 114 |
| FRA-TW-1M-OS-8C1S | 8×1.0 | 19/0.25 | 0.3 | 8.9 | 171 |
| FRA-TW-1M-OS-25C1S | 25×1.0 | 19/0.25 | 0.3 | 13.8 | 392 |
| FRA-TW-1M-OS-2P1S | 2×2×1.0 | 19/0.25 | 0.3 | 8.3 | 117 |
| FRA-TW-1M-OS-2C1.5S | 2×1.5 | 19/0.3 | 0.3 | 6.5 | 86 |
| FRA-TW-1M-OS-3C1.5S | 3×1.5 | 19/0.3 | 0.3 | 6.8 | 95 |
| FRA-TW-1M-OS-4C1.5S | 4×1.5 | 19/0.3 | 0.3 | 7.4 | 118 |
| FRA-TW-1M-OS-6C1.5S | 6×1.5 | 19/0.3 | 0.3 | 9.0 | 168 |
| FRA-TW-1M-OS-18C1.5S | 18×1.5 | 19/0.3 | 0.3 | 14.4 | 452 |
| FRA-TW-1M-OS-2C2.5S | 2×2.5 | 19/0.4 | 0.4 | 7.8 | 122 |
| FRA-TW-1M-OS-4C2.5S | 4×2.5 | 19/0.4 | 0.4 | 8.4 | 152 |
| FRA-TW-1M-OS-6C2.5S | 6×2.5 | 19/0.4 | 0.4 | 11.4 | 268 |
 |
 |
 |
 |
 |
 |
Impact Resistant |
Highly Flexible |
UV Resistant |
Oil Resistant |
Weather Resistant |
Low Toxicity |
 |
 |
 |
|
|
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 |
Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453 |
